DANFORTH ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-05

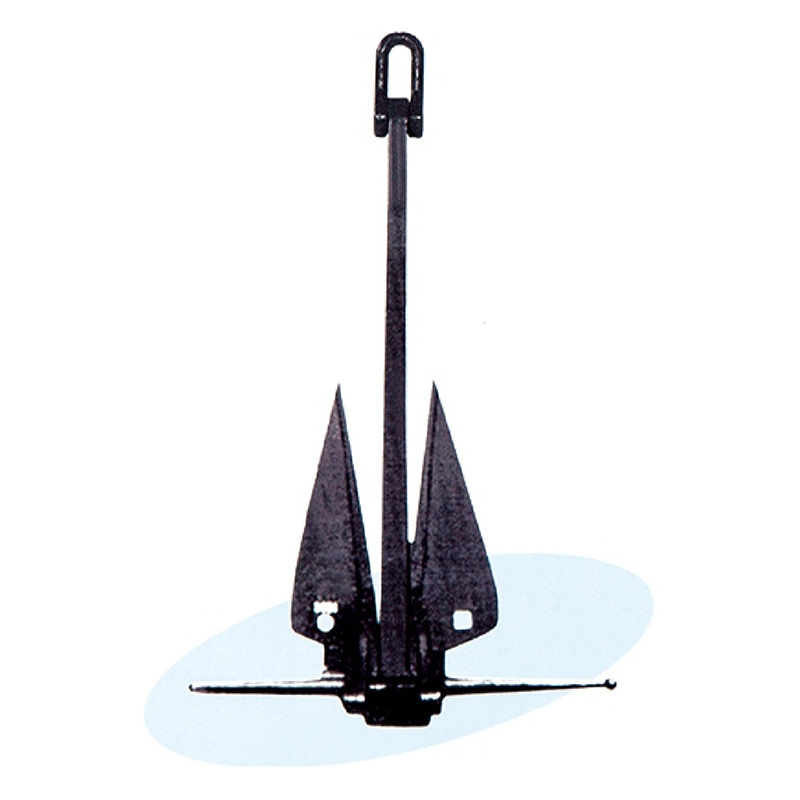

The Danford anchor is a lightweight, high-grip anchor developed by Richard. It was invented by S. Danforth in 1939 and was initially used on landing craft during World War II. Its design is renowned for its light weight and strong grip, making it highly suitable for yachts, small vessels, and as an auxiliary anchor for large ships.
Unlike common rodless anchors such as Hall anchors and Sbeck anchors, Danford anchors are rodless anchors equipped with crossbars, which can help the anchor quickly adjust its Angle and make it easier for the anchor claws to penetrate the seabed.

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

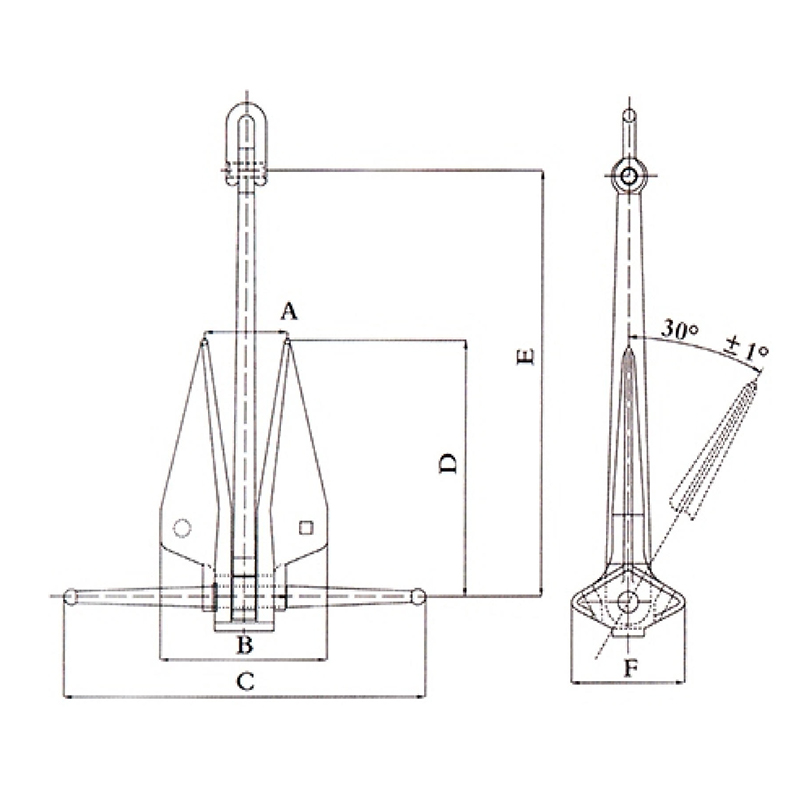

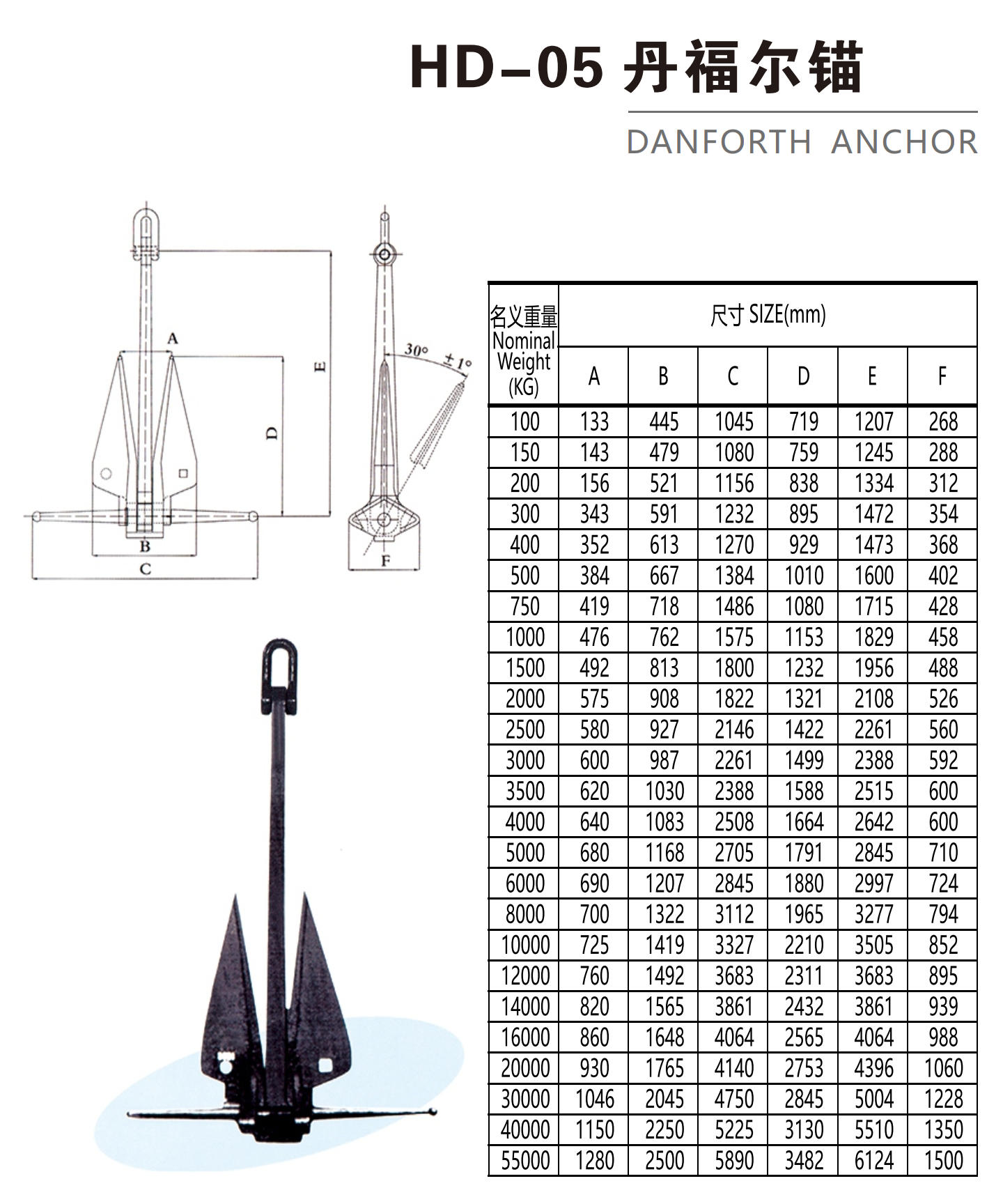

Nominal Weight (KG)	SIZE(mm)						HD-05
Nominal Weight (KG)	A	B	C	D	E	F
100	133	445	1045	719	1207	268
150	143	479	1080	759	1245	288
200	156	521	1156	838	1334	312
300	343	591	1232	895	1472	354
400	352	613	1270	929	1473	368
500	384	667	1384	1010	1600	402
750	419	718	1486	1080	1715	428
1000	476	762	1575	1153	1829	458
1500	492	813	1800	1232	1956	488
2000	575	908	1822	1321	2108	526
2500	580	927	2146	1422	2261	560
3000	600	987	2261	1499	2388	592
3500	620	1030	2388	1588	2515	600
4000	640	1083	2508	1664	2642	600
5000	680	1168	2705	1791	2845	710
6000	690	1207	2845	1880	2997	724
8000	700	1322	3112	1965	3277	794
10000	725	1419	3327	2210	3505	852
12000	760	1492	3683	2311	3683	895
14000	820	1565	3861	2432	3861	939
16000	860	1648	4064	2565	4064	988
20000	930	1765	4140	2753	4396	1060
30000	1046	2045	4750	2845	5004	1228
40000	1150	2250	5225	3130	5510	1350
55000	1280	2500	5890	3482	6124	1500
