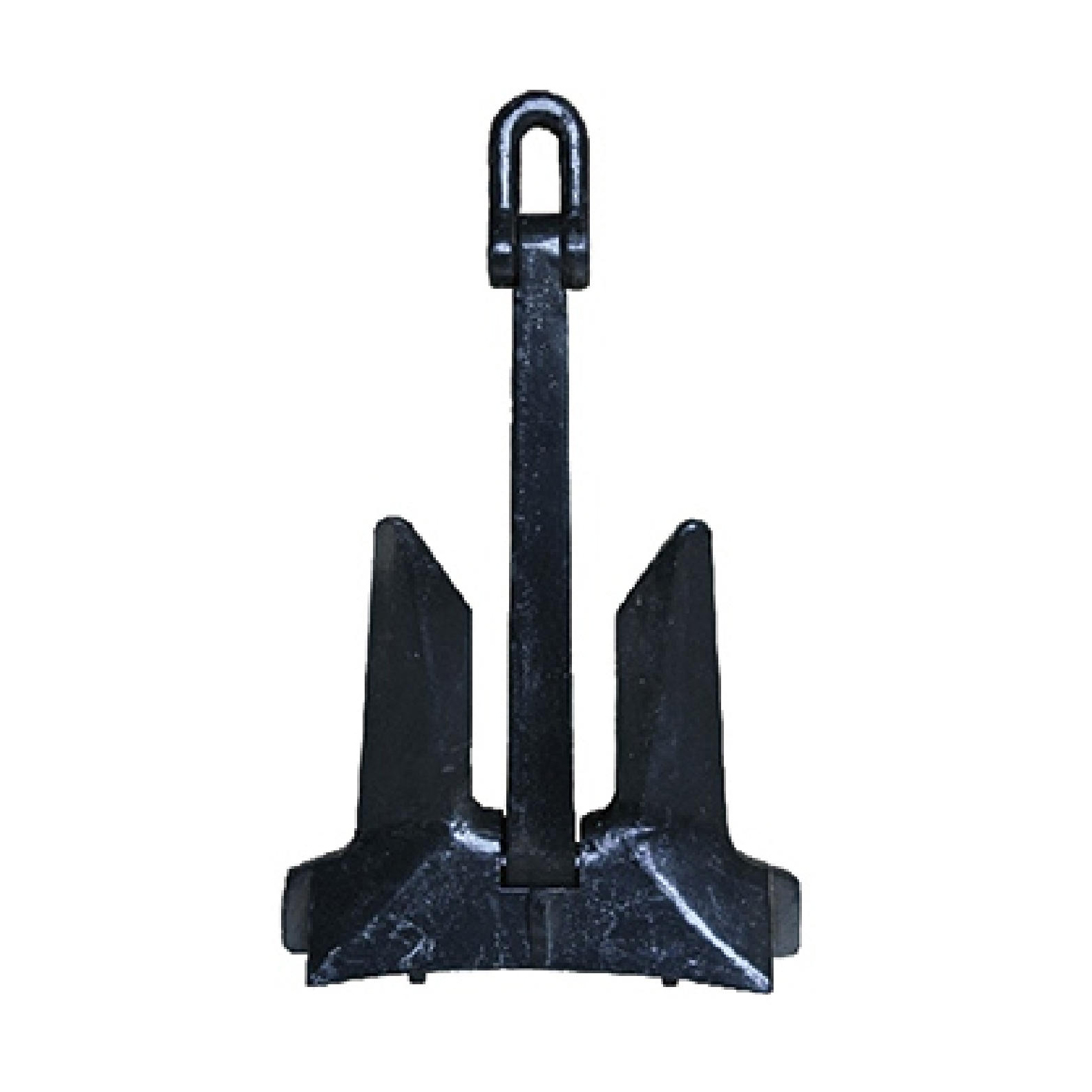

AC-14 ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-08

The AC-14 anchor is a widely used high-grip rodless anchor. It was developed in the middle of the 20th century to replace traditional rodless anchors (such as Hall anchors and Bell anchors), and was optimized in design to provide stronger grip and lighter weight. This anchor has been certified as a high-grip anchor by the major international classification societies (IACS), and thus is widely adopted on modern merchant ships and offshore engineering vessels.
Due to its superior performance, the AC-14 anchor has been approved by the International Association of Classification Societies (IACS) as a high-grip anchor and has now become one of the standard configurations for large merchant ships, including bulk carriers, oil tankers, LNG carriers, and container ships.

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

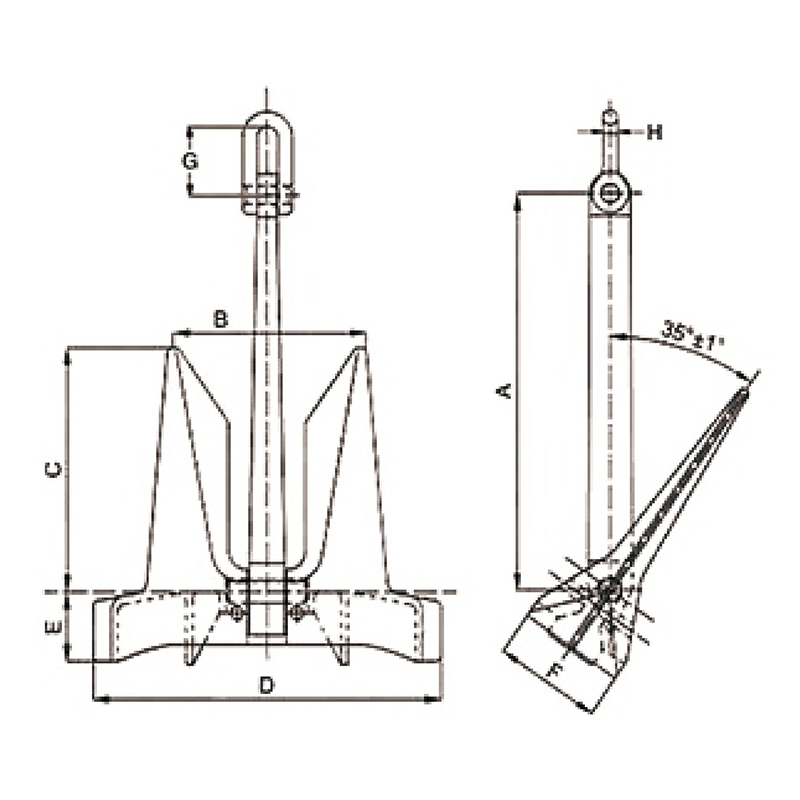

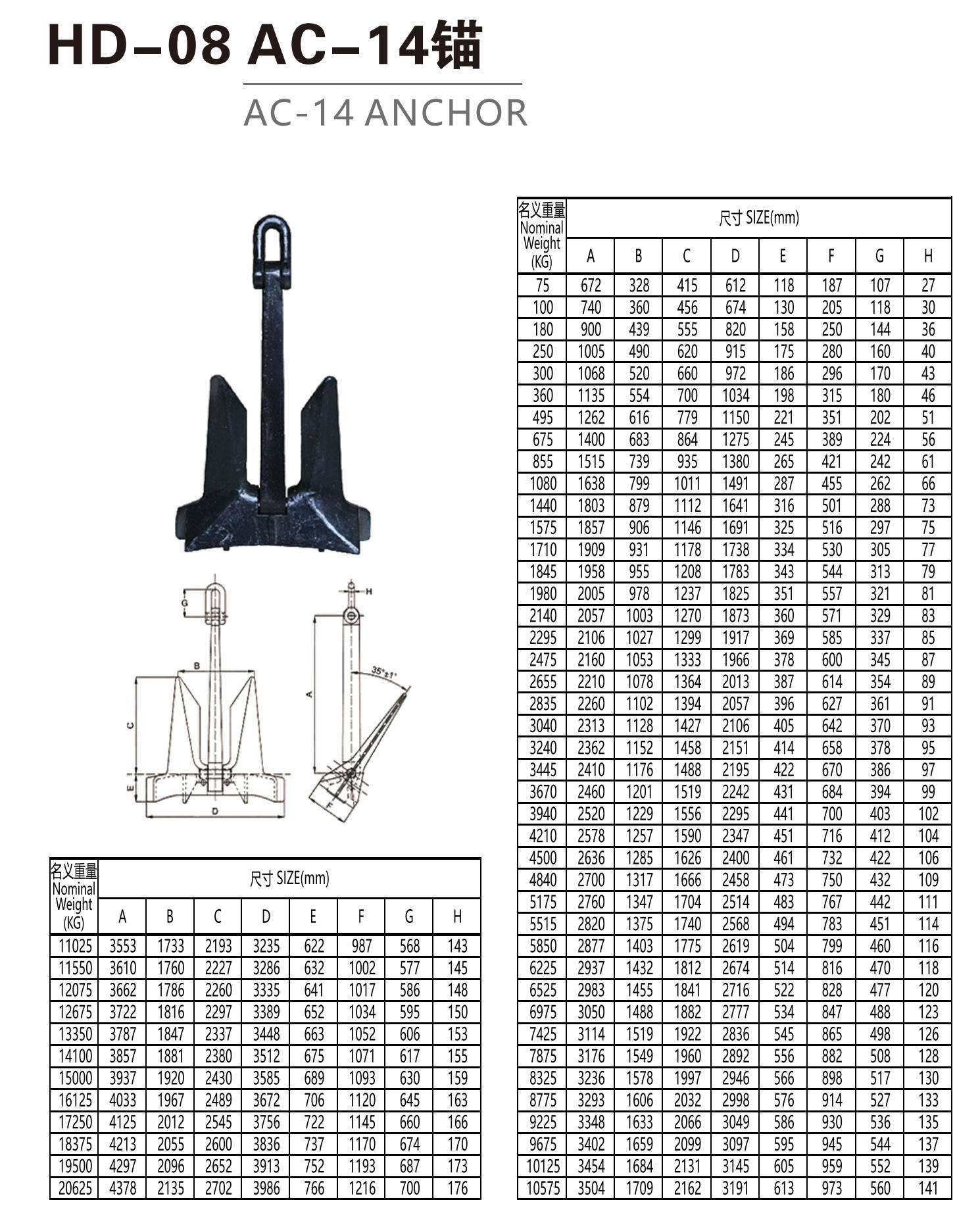

Nominal Weight (KG)	SIZE(mm)								HD-08
Nominal Weight (KG)	A	B	C	D	E	F	G	H
75	672	328	415	612	118	187	107	27
100	740	360	456	674	130	205	118	30
180	900	439	555	820	158	250	144	36
250	1005	490	620	915	175	280	160	40
300	1068	520	660	972	186	296	170	43
360	1135	554	700	1034	198	315	180	46
495	1262	616	779	1150	221	351	202	51
675	1400	683	864	1275	245	389	224	56
855	1515	739	935	1380	265	421	242	61
1080	1638	799	1011	1491	287	455	262	66
1440	1803	879	1112	1641	316	501	288	73
1575	1857	906	1146	1691	325	516	297	75
1710	1909	931	1178	1738	334	530	305	77
1845	1958	955	1208	1783	343	544	313	79
1980	2005	978	1237	1825	351	557	321	81
2140	2057	1003	1270	1873	360	571	329	83
2295	2106	1027	1299	1917	369	585	337	85
2475	2160	1053	1333	1966	378	600	345	87
2655	2210	1078	1364	2013	387	614	354	89
2835	2260	1102	1394	2057	396	627	361	91
3040	2313	1128	1427	2106	405	642	370	93
3240	2362	1152	1458	2151	414	658	378	95
3445	2410	1176	1488	2195	422	670	386	97
3670	2460	1201	1519	2242	431	684	394	99
3940	2520	1229	1556	2295	441	700	403	102
4210	2578	1257	1590	2347	451	716	412	104
4500	2636	1285	1626	2400	461	732	422	106
4840	2700	1317	1666	2458	473	750	432	109
5175	2760	1347	1704	2514	483	767	442	111
5515	2820	1375	1740	2568	494	783	451	114
5850	2877	1403	1775	2619	504	799	460	116
6225	2937	1432	1812	2674	514	816	470	118
6525	2983	1455	1841	2716	522	828	477	120
6975	3050	1488	1882	2777	534	847	488	123
7425	3114	1519	1922	2836	545	865	498	126
7875	3176	1549	1960	2892	556	882	508	128
8325	3236	1578	1997	2946	566	898	517	130
8775	3293	1606	2032	2998	576	914	527	133
9225	3348	1633	2066	3049	586	930	536	135
9675	3402	1659	2099	3097	595	945	544	137
10125	3454	1684	2131	3145	605	959	552	139
10575	3504	1709	2162	3191	613	973	560	141
11025	3553	1733	2193	3235	622	987	568	143
11550	3610	1760	2227	3286	632	1002	577	145
12075	3662	1786	2260	3335	641	1017	586	148
12675	3722	1816	2297	3389	652	1034	595	150
13350	3787	1847	2337	3448	663	1052	606	153
14100	3857	1881	2380	3512	675	1071	617	155
15000	3937	1920	2430	3585	689	1093	630	159
16125	4033	1967	2489	3672	706	1120	645	163
17250	4125	2012	2545	3756	722	1145	660	166
18375	4213	2055	2600	3836	737	1170	674	170
19500	4297	2096	2652	3913	752	1193	687	173
