95-SPEK ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-04

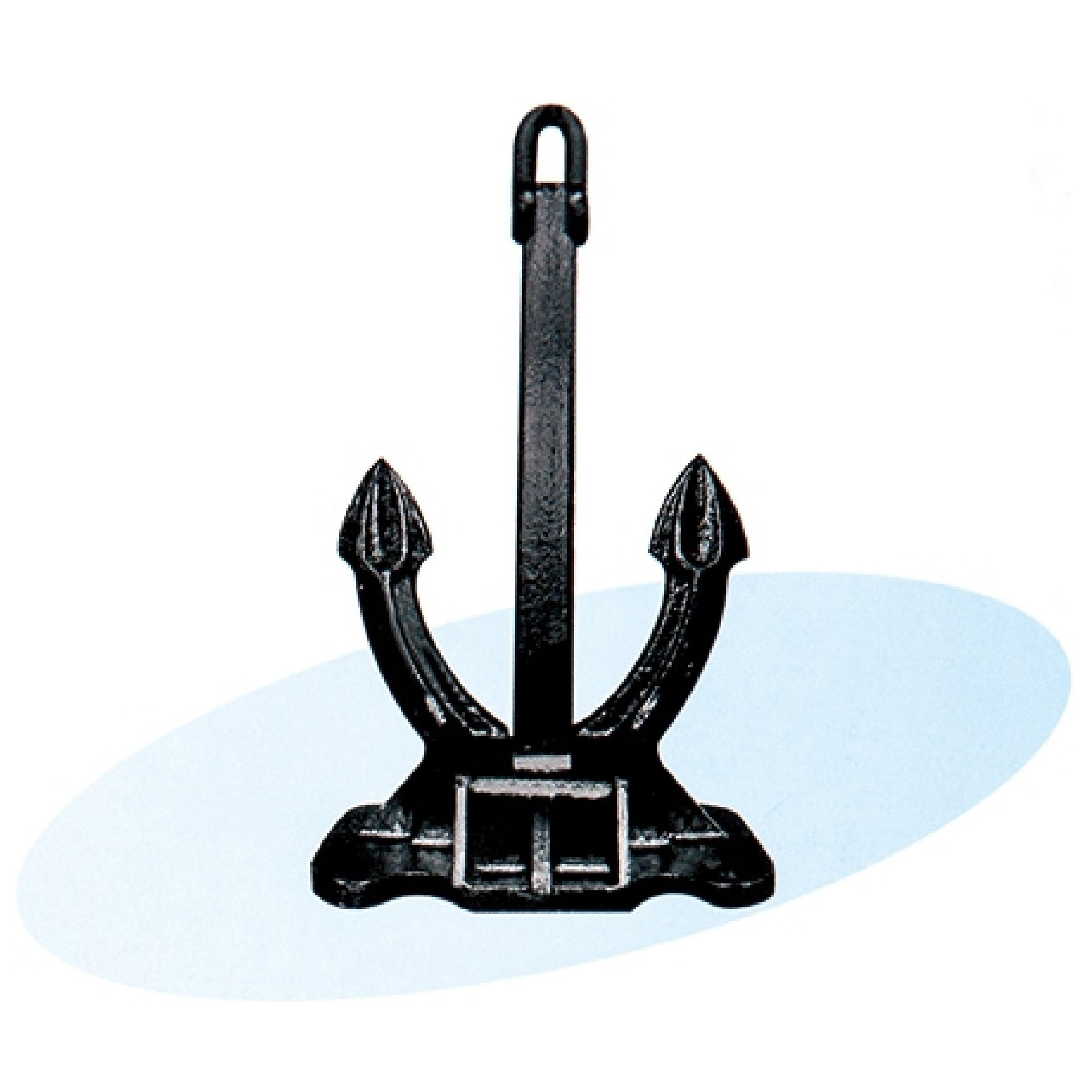

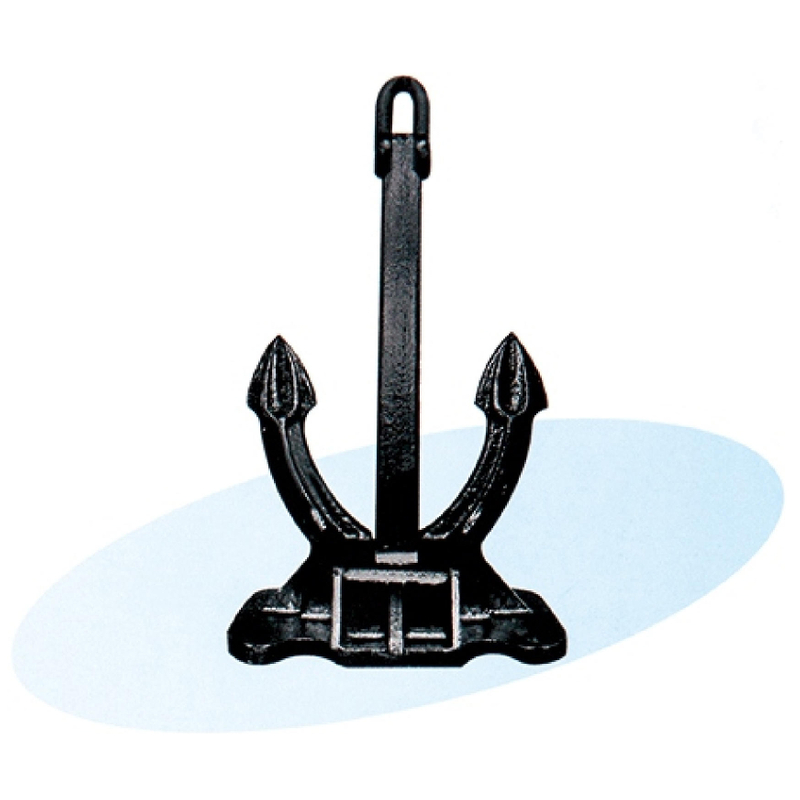

The Type 95 Speck anchor is a widely used high-grip rodless anchor. It was first designed by the Dutch SPEK Anchor Company in 1959 and later recognized and standardized by the International Classification Society (IACS), becoming one of the commonly used anchor types on modern merchant ships.
"95" generally refers to its model under the updated standard specifications in 1995, which meets the requirements of the IMO (International Maritime Organization) and major classification societies for high-grip anchors. Compared with traditional rodless anchors (such as Hall anchors and Bell anchors), Speck anchors have a higher graber-to-weight ratio. Generally, under the same weight, their grasping force is about twice that of traditional rodless anchors.

Ship Anchor Baldt Stockless Hall Spek High Holding Power

Product Description

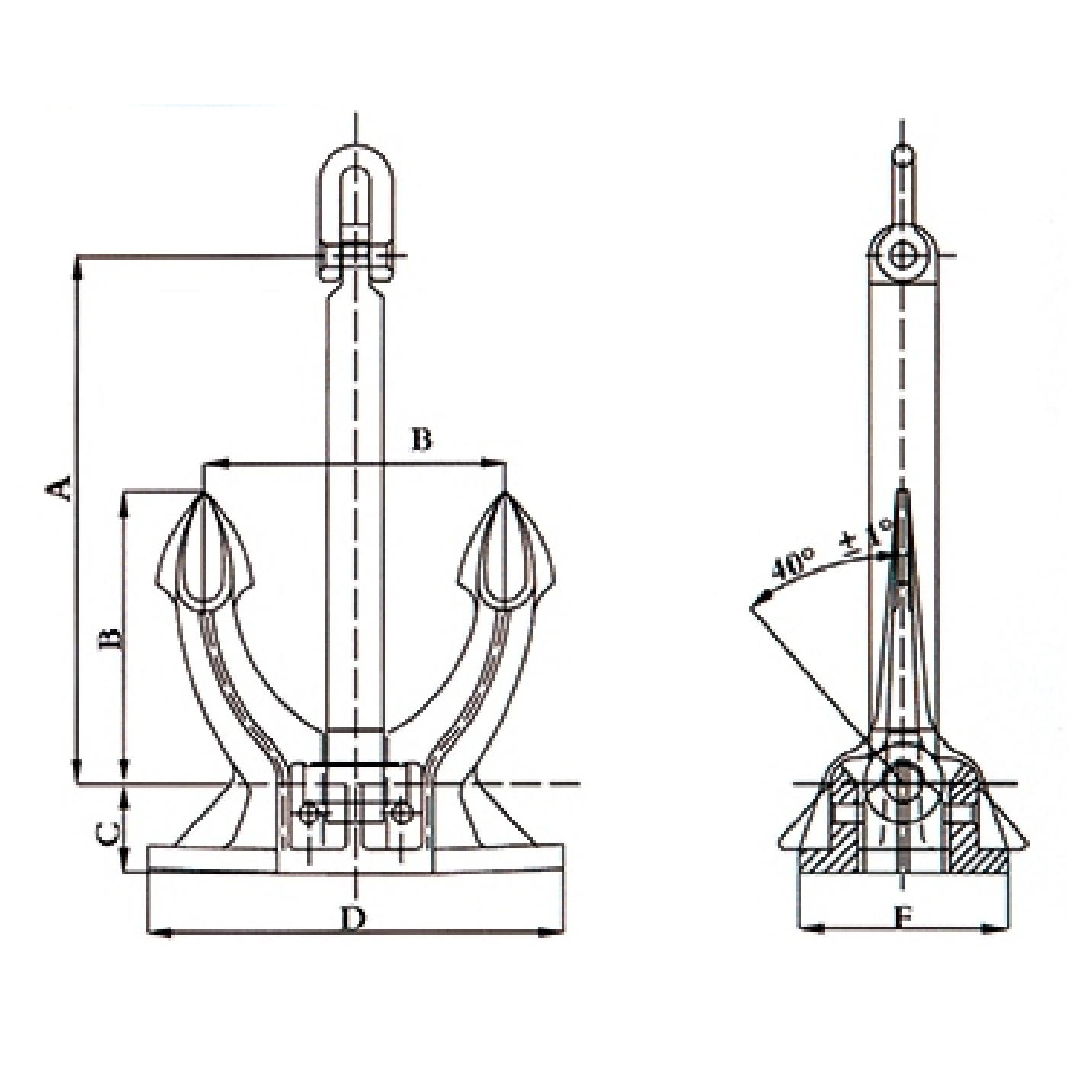

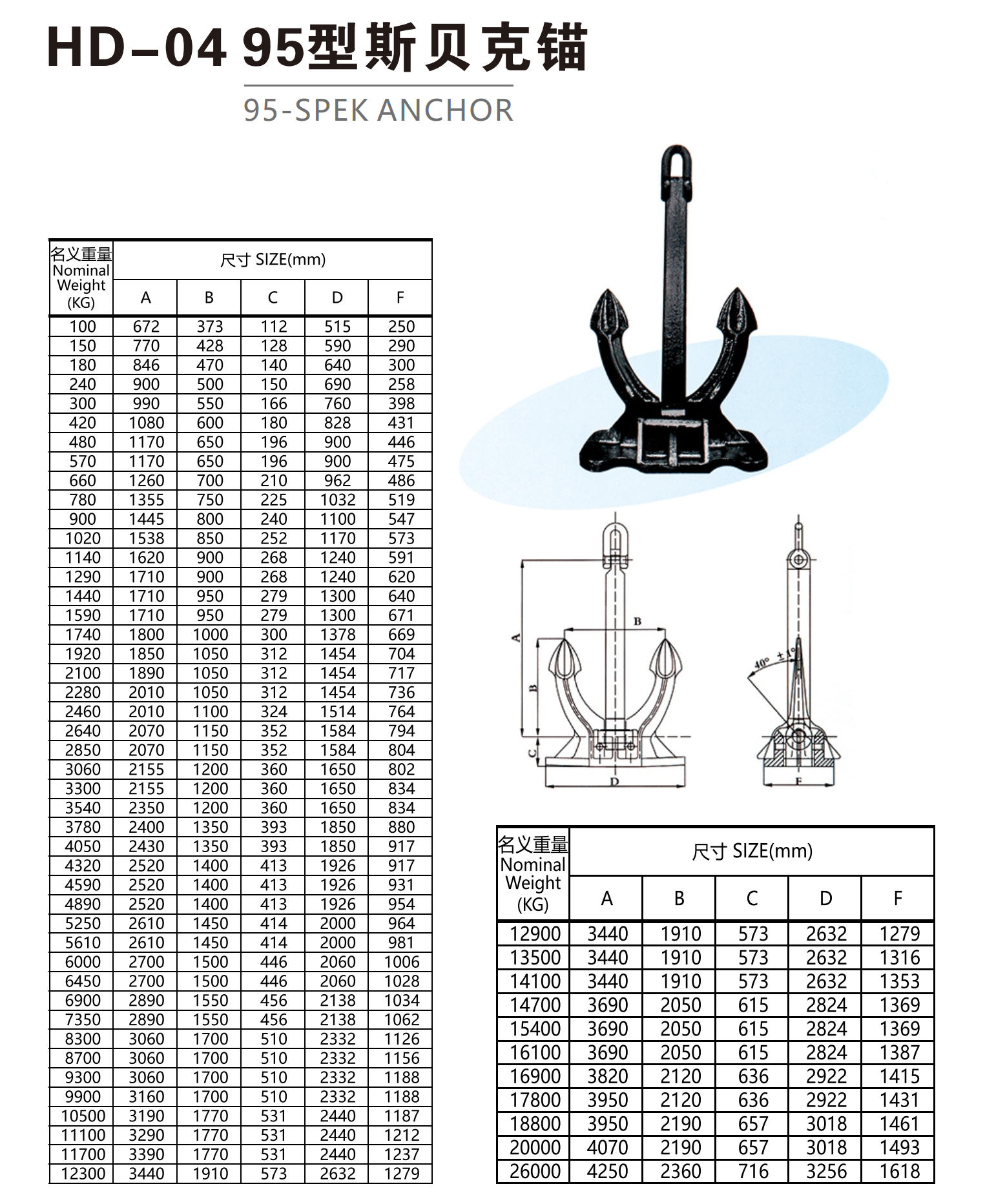

Nominal Weight (KG)	SIZE(mm)					HD-04
Nominal Weight (KG)	A	B	C	D	F
100	672	373	112	515	250
150	770	428	128	590	290
180	846	470	140	640	300
240	900	500	150	690	258
300	990	550	166	760	398
420	1080	600	180	828	431
480	1170	650	196	900	446
570	1170	650	196	900	475
660	1260	700	210	962	486
780	1355	750	225	1032	519
900	1445	800	240	1100	547
1020	1538	850	252	1170	573
1140	1620	900	268	1240	591
1290	1710	900	268	1240	620
1440	1710	950	279	1300	640
1590	1710	950	279	1300	671
1740	1800	1000	300	1378	669
1920	1850	1050	312	1454	704
2100	1890	1050	312	1454	717
2280	2010	1050	312	1454	736
2460	2010	1100	324	1514	764
2640	2070	1150	352	1584	794
2850	2070	1150	352	1584	804
3060	2155	1200	360	1650	802
3300	2155	1200	360	1650	834
3540	2350	1200	360	1650	834
3780	2400	1350	393	1850	880
4050	2430	1350	393	1850	917
4320	2520	1400	413	1926	917
4590	2520	1400	413	1926	931
4890	2520	1400	413	1926	954
5250	2610	1450	414	2000	964
5610	2610	1450	414	2000	981
6000	2700	1500	446	2060	1006
6450	2700	1500	446	2060	1028
6900	2890	1550	456	2138	1034
7350	2890	1550	456	2138	1062
8300	3060	1700	510	2332	1126
8700	3060	1700	510	2332	1156
9300	3060	1700	510	2332	1188
9900	3160	1700	510	2332	1188
10500	3190	1770	531	2440	1187
11100	3290	1770	531	2440	1212
11700	3390	1770	531	2440	1237
12300	3440	1910	573	2632	1279
12900	3440	1910	573	2632	1279
13500	3440	1910	573	2632	1316
14100	3440	1910	573	2632	1353
14700	3690	2050	615	2824	1369
15400	3690	2050	615	2824	1369
16100	3690	2050	615	2824	1387
16900	3820	2120	636	2922	1415
17800	3950	2120	636	2922	1431
18800	3950	2190	657	3018	1461
20000	4070	2190	657	3018	1493
26000	4250	2360	716	3256	1618
