JIS STOCKLESS ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-02

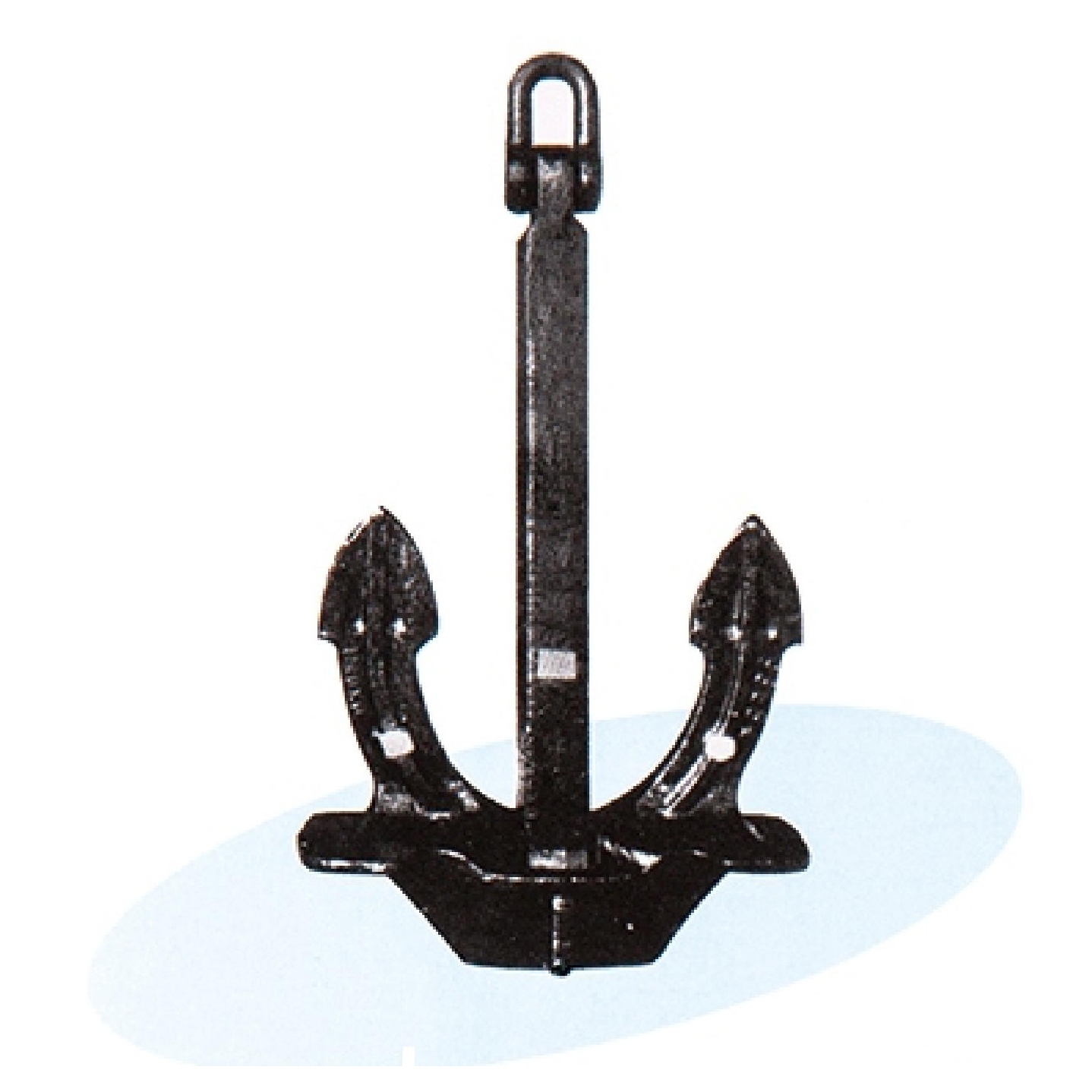

The Japanese rodless anchor is a type of rodless anchor manufactured in accordance with Japanese industrial standards. It is widely used on merchant ships and warships in Japan and many other countries. Unlike the traditional anchor with rods, this type of anchor has no crossbars and can be directly placed in the anchor chain tube. It has a compact structure and is easy to operate.

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

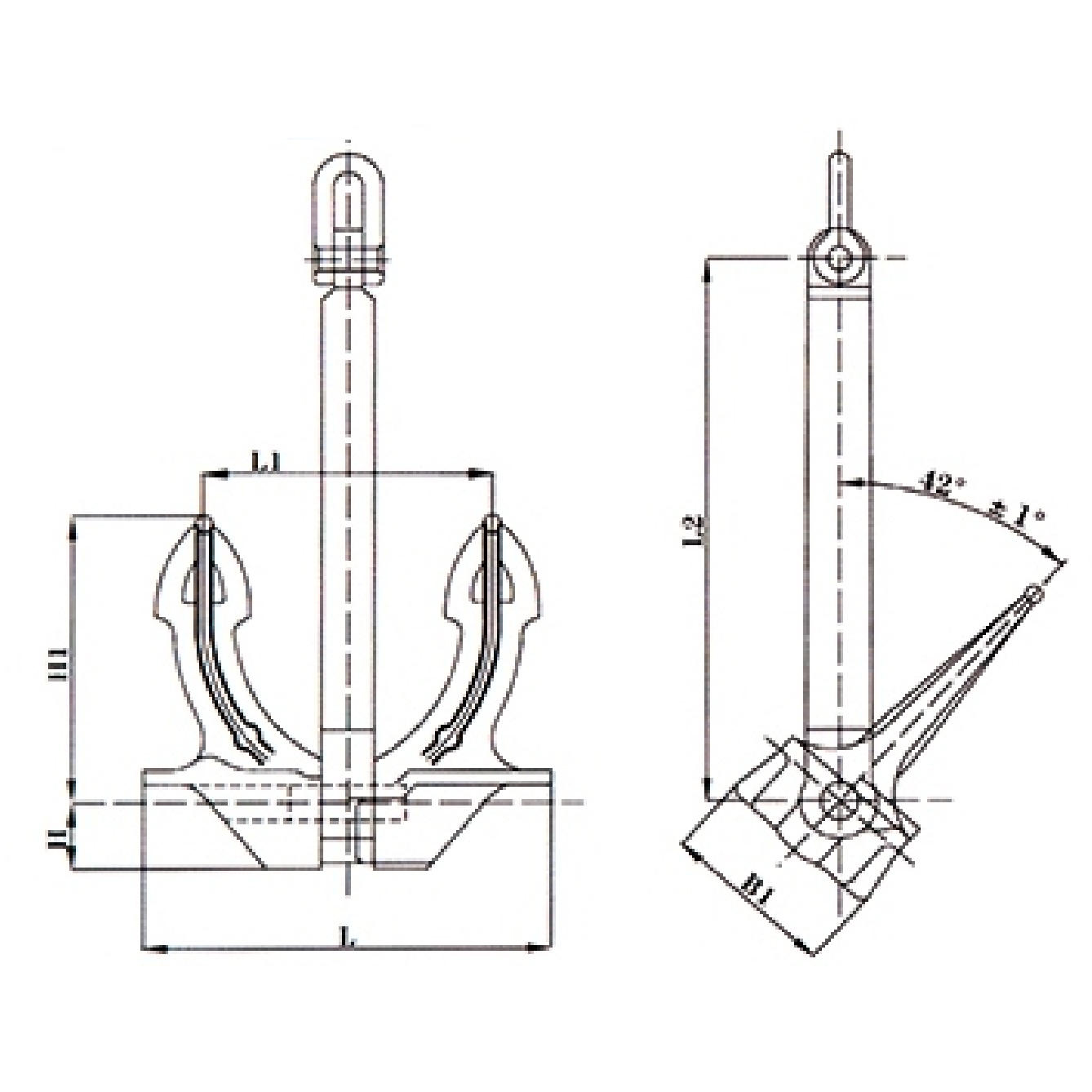

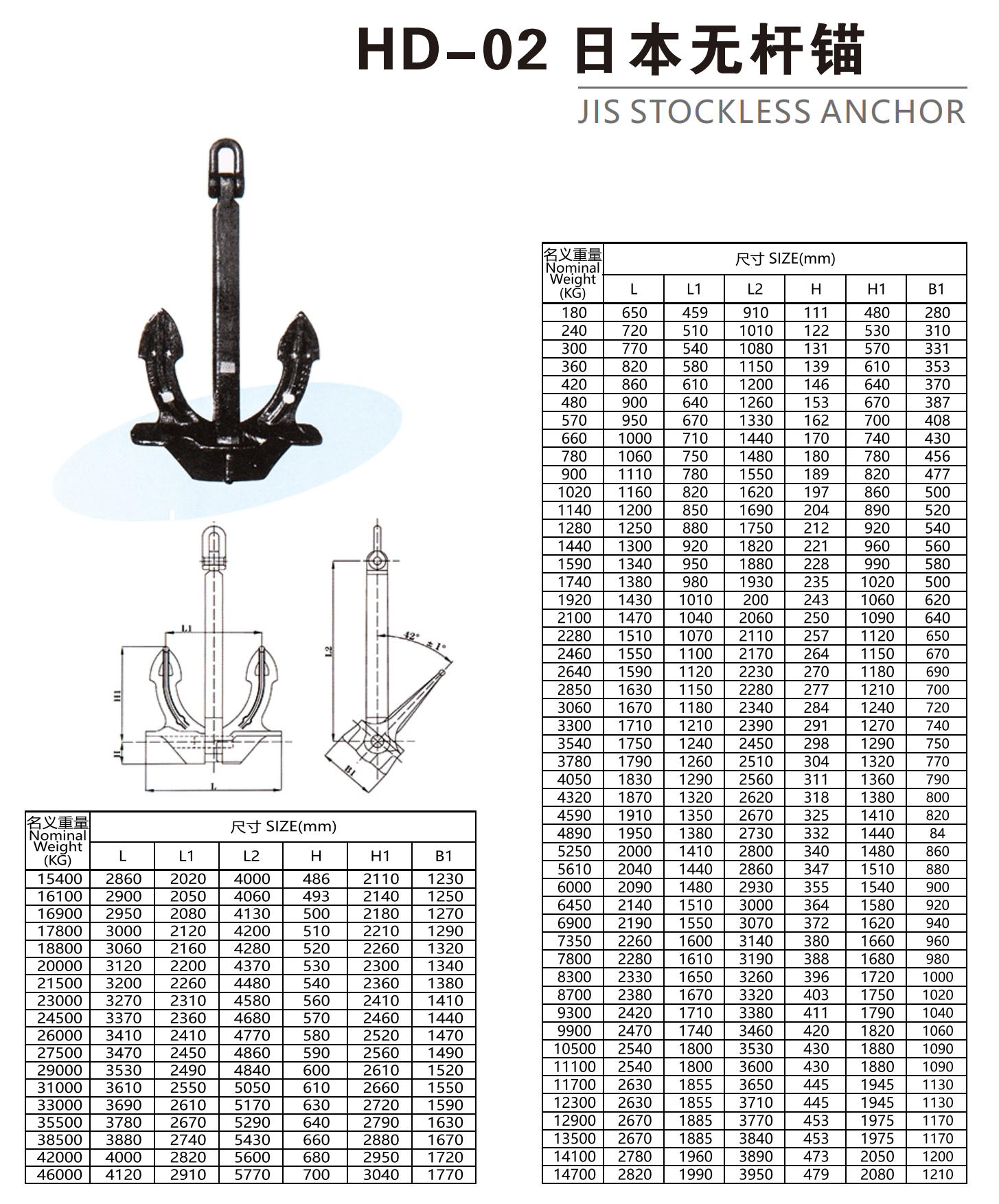

Nominal Weight (KG)	SIZE(mm)						HD-02
Nominal Weight (KG)	L	L1	L2	H	H1	B1
15400	2860	2020	4000	486	2110	1230
16100	2900	2050	4060	493	2140	1250
16900	2950	2080	4130	500	2180	1270
17800	3000	2120	4200	510	2210	1290
18800	3060	2160	4280	520	2260	1320
20000	3120	2200	4370	530	2300	1340
21500	3200	2260	4480	540	2360	1380
23000	3270	2310	4580	560	2410	1410
24500	3370	2360	4680	570	2460	1440
26000	3410	2410	4770	580	2520	1470
27500	3470	2450	4860	590	2560	1490
29000	3530	2490	4840	600	2610	1520
31000	3610	2550	5050	610	2660	1550
33000	3690	2610	5170	630	2720	1590
35500	3780	2670	5290	640	2790	1630
38500	3880	2740	5430	660	2880	1670
42000	4000	2820	5600	680	2950	1720
46000	4120	2910	5770	700	3040	1770
Nominal Weight (KG)	SIZE(mm)
Nominal Weight (KG)	L	L1	L2	H	H1	B1
180	650	459	910	111	480	280
240	720	510	1010	122	530	310
300	770	540	1080	131	570	331
360	820	580	1150	139	610	353
420	860	610	1200	146	640	370
480	900	640	1260	153	670	387
570	950	670	1330	162	700	408
660	1000	710	1440	170	740	430
780	1060	750	1480	180	780	456
900	1110	780	1550	189	820	477
1020	1160	820	1620	197	860	500
1140	1200	850	1690	204	890	520
1280	1250	880	1750	212	920	540
1440	1300	920	1820	221	960	560
1590	1340	950	1880	228	990	580
1740	1380	980	1930	235	1020	500
1920	1430	1010	200	243	1060	620
2100	1470	1040	2060	250	1090	640
2280	1510	1070	2110	257	1120	650
2460	1550	1100	2170	264	1150	670
2640	1590	1120	2230	270	1180	690
2850	1630	1150	2280	277	1210	700
3060	1670	1180	2340	284	1240	720
3300	1710	1210	2390	291	1270	740
3540	1750	1240	2450	298	1290	750
3780	1790	1260	2510	304	1320	770
4050	1830	1290	2560	311	1360	790
4320	1870	1320	2620	318	1380	800
4590	1910	1350	2670	325	1410	820
4890	1950	1380	2730	332	1440	84
5250	2000	1410	2800	340	1480	860
5610	2040	1440	2860	347	1510	880
6000	2090	1480	2930	355	1540	900
6450	2140	1510	3000	364	1580	920
6900	2190	1550	3070	372	1620	940
7350	2260	1600	3140	380	1660	960
7800	2280	1610	3190	388	1680	980
8300	2330	1650	3260	396	1720	1000
8700	2380	1670	3320	403	1750	1020
9300	2420	1710	3380	411	1790	1040
9900	2470	1740	3460	420	1820	1060
10500	2540	1800	3530	430	1880	1090
11100	2540	1800	3600	430	1880	1090
11700	2630	1855	3650	445	1945	1130
12300	2630	1855	3710	445	1945	1130
12900	2670	1885	3770	453	1975	1170
13500	2670	1885	3840	453	1975	1170
14100	2780	1960	3890	473	2050	1200
14700	2820	1990	3950	479	2080	1210
