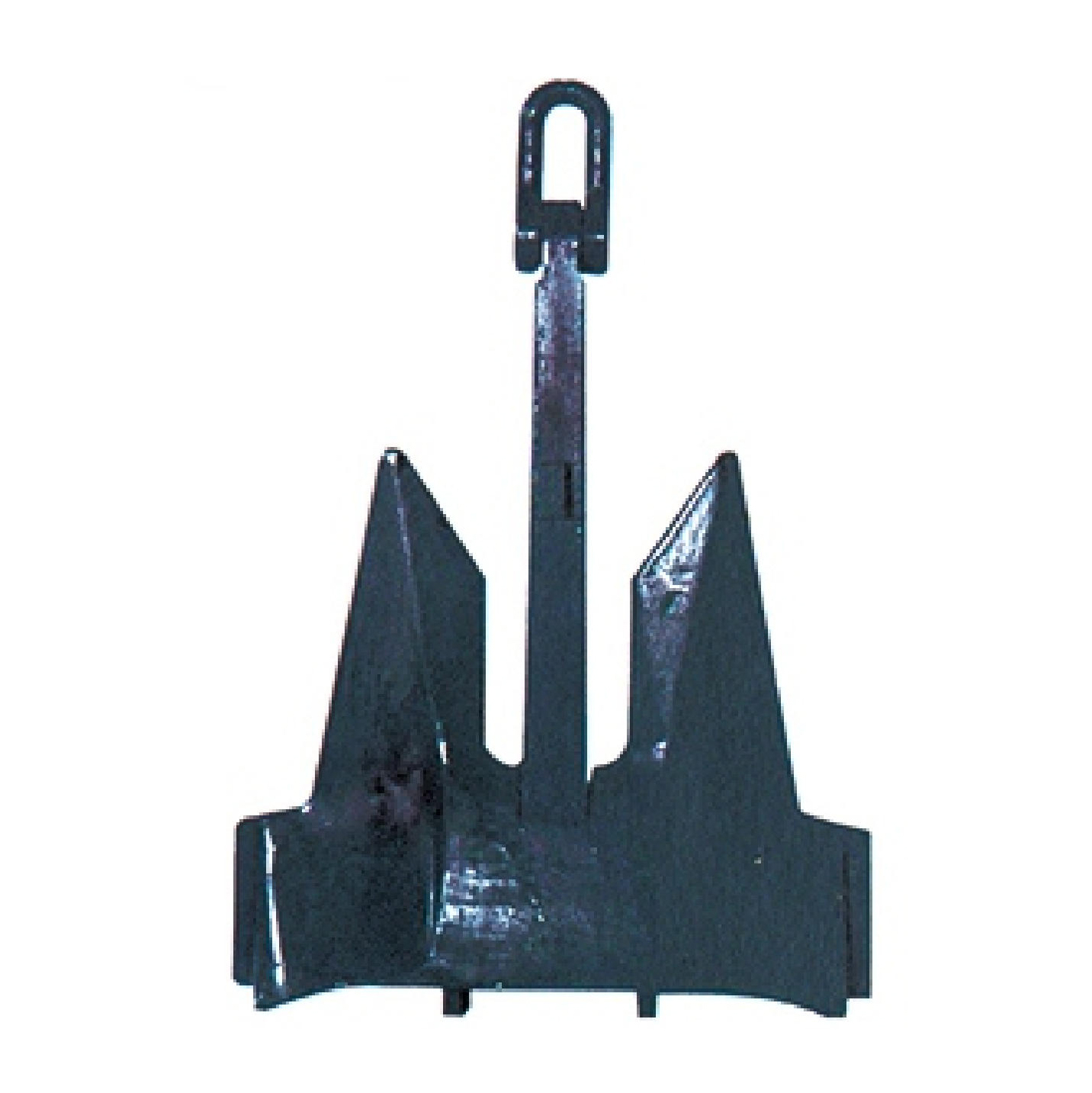

AC-14 SELF ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-09

The AC-14 self-entry anchor is an improved version of the AC-14 high-grip rodless anchor, featuring self-positioning and self-retraction and release. Its core advantage lies in the fact that when the anchor is retrieved, it can automatically adjust its posture and smoothly enter the anchor chain tube, reducing manual operation and adjustment, and enhancing safety and efficiency.
This design is highly suitable for modern large merchant ships (such as bulk carriers, container ships, LNG carriers and oil tankers), and is especially widely applied on vessels that need to frequently anchor and unanchor.

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

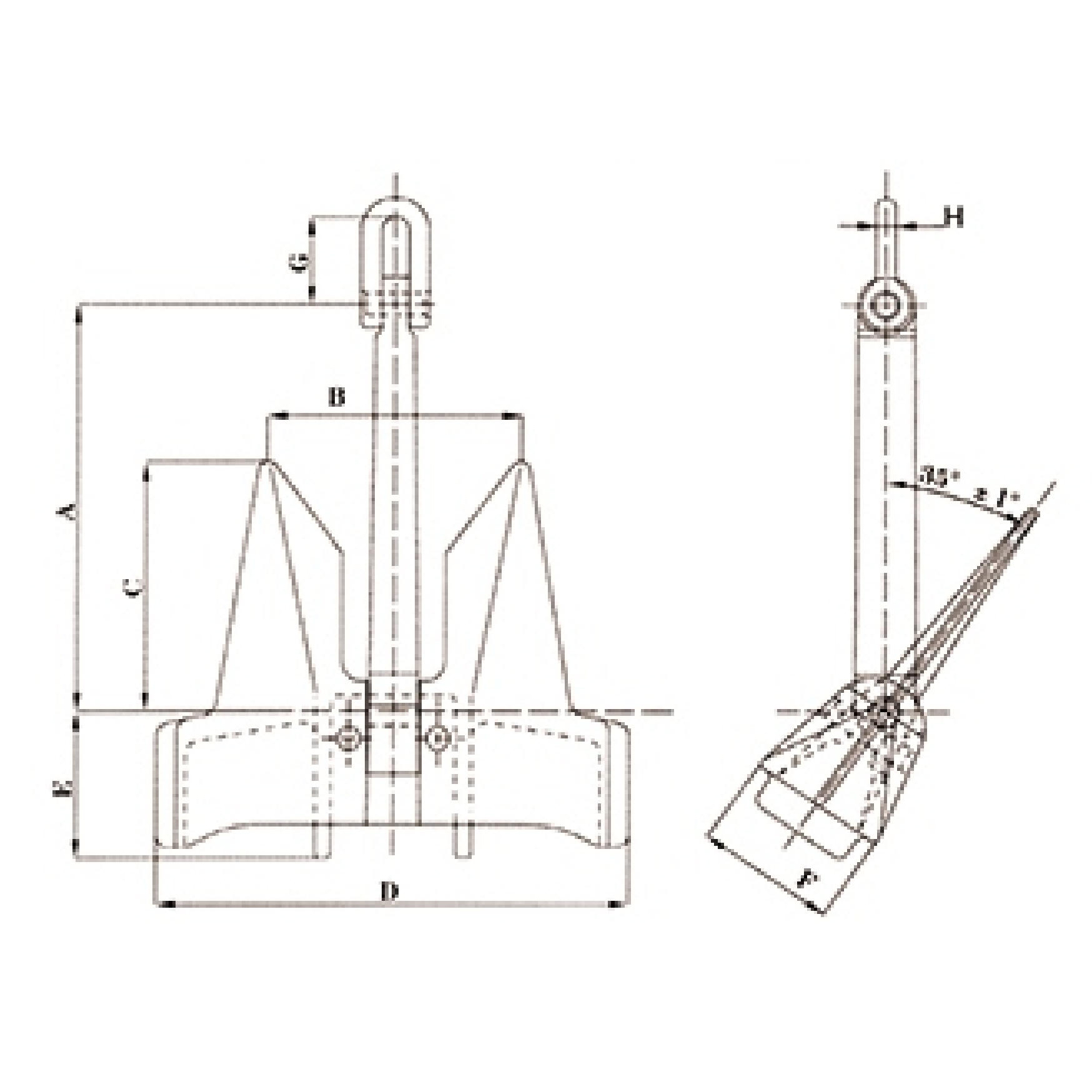

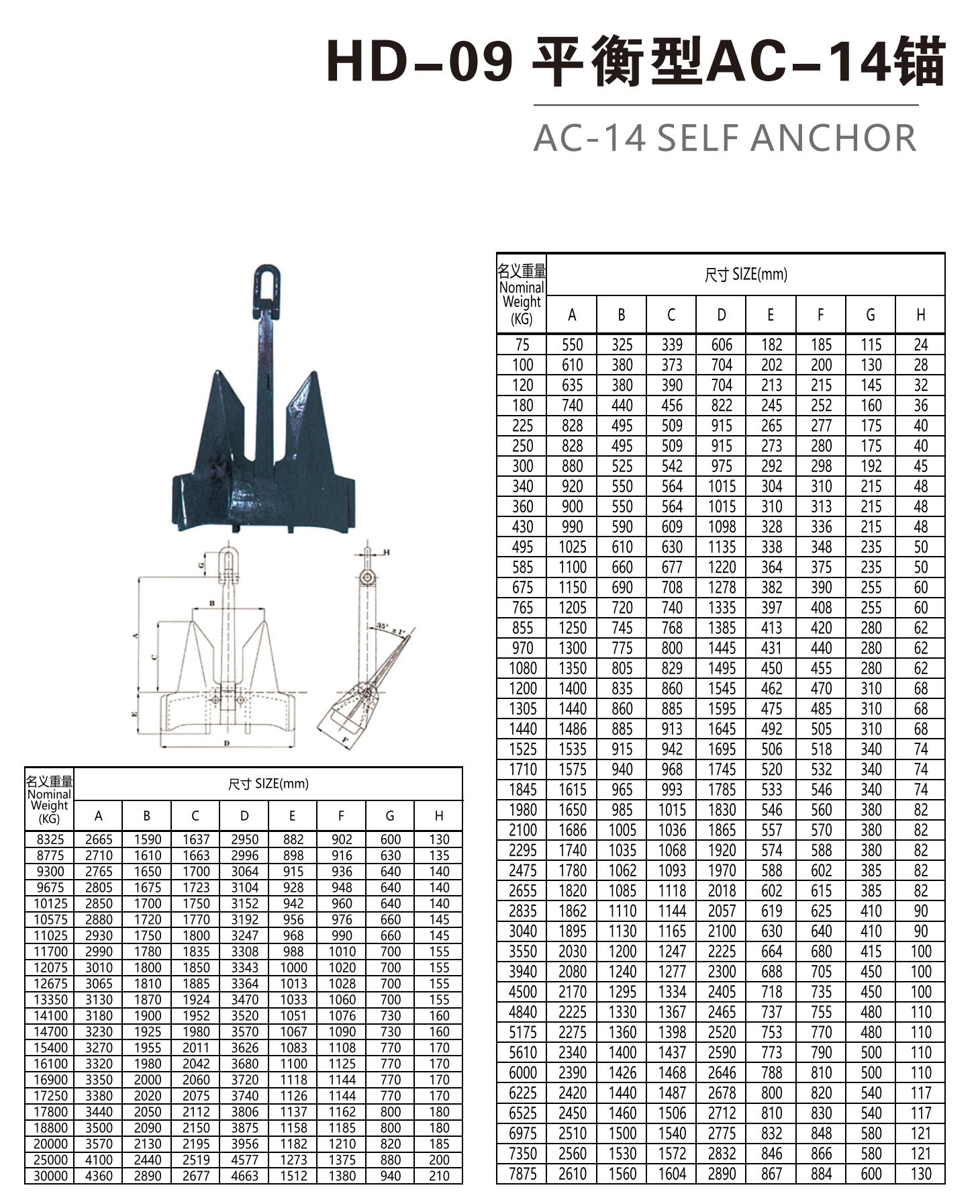

Nominal Weight (KG)	SIZE(mm)								HD-09
Nominal Weight (KG)	A	B	C	D	E	F	G	H
75	550	325	339	606	182	185	115	24
100	610	380	373	704	202	200	130	28
120	635	380	390	704	213	215	145	32
180	740	440	456	822	245	252	160	36
225	828	495	509	915	265	277	175	40
250	828	495	509	915	273	280	175	40
300	880	525	542	975	292	298	192	45
340	920	550	564	1015	304	310	215	48
360	900	550	564	1015	310	313	215	48
430	990	590	609	1098	328	336	215	48
495	1025	610	630	1135	338	348	235	50
585	1100	660	677	1220	364	375	235	50
675	1150	690	708	1278	382	390	255	60
765	1205	720	740	1335	397	408	255	60
855	1250	745	768	1385	413	420	280	62
970	1300	775	800	1445	431	440	280	62
1080	1350	805	829	1495	450	455	280	62
1200	1400	835	860	1545	462	470	310	68
1305	1440	860	885	1595	475	485	310	68
1440	1486	885	913	1645	492	505	310	68
1525	1535	915	942	1695	506	518	340	74
1710	1575	940	968	1745	520	532	340	74
1845	1615	965	993	1785	533	546	340	74
1980	1650	985	1015	1830	546	560	380	82
2100	1686	1005	1036	1865	557	570	380	82
2295	1740	1035	1068	1920	574	588	380	82
2475	1780	1062	1093	1970	588	602	385	82
2655	1820	1085	1118	2018	602	615	385	82
2835	1862	1110	1144	2057	619	625	410	90
3040	1895	1130	1165	2100	630	640	410	90
3550	2030	1200	1247	2225	664	680	415	100
3940	2080	1240	1277	2300	688	705	450	100
4500	2170	1295	1334	2405	718	735	450	100
4840	2225	1330	1367	2465	737	755	480	110
5175	2275	1360	1398	2520	753	770	480	110
5610	2340	1400	1437	2590	773	790	500	110
6000	2390	1426	1468	2646	788	810	500	110
6225	2420	1440	1487	2678	800	820	540	117
6525	2450	1460	1506	2712	810	830	540	117
6975	2510	1500	1540	2775	832	848	580	121
7350	2560	1530	1572	2832	846	866	580	121
7875	2610	1560	1604	2890	867	884	600	130
8325	2665	1590	1637	2950	882	902	600	130
8775	2710	1610	1663	2996	898	916	630	135
9300	2765	1650	1700	3064	915	936	640	140
9675	2805	1675	1723	3104	928	948	640	140
10125	2850	1700	1750	3152	942	960	640	140
10575	2880	1720	1770	3192	956	976	660	145
11025	2930	1750	1800	3247	968	990	660	145
11700	2990	1780	1835	3308	988	1010	700	155
12075	3010	1800	1850	3343	1000	1020	700	155
12675	3065	1810	1885	3364	1013	1028	700	155
13350	3130	1870	1924	3470	1033	1060	700	155
14100	3180	1900	1952	3520	1051	1076	730	160
14700	3230	1925	1980	3570	1067	1090	730	160
15400	3270	1955	2011	3626	1083	1108	770	170
16100	3320	1980	2042	3680	1100	1125	770	170
16900	3350	2000	2060	3720	1118	1144	770	170
17250	3380	2020	2075	3740	1126	1144	770	170
17800	3440	2050	2112	3806	1137	1162	800	180
18800	3500	2090	2150	3875	1158	1185	800	180
20000	3570	2130	2195	3956	1182	1210	820	185
25000	4100	2440	2519	4577	1273	1375	880	200
30000	4360	2890	2677	4663	1512	1380	940	210
