TW-POOL ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-11

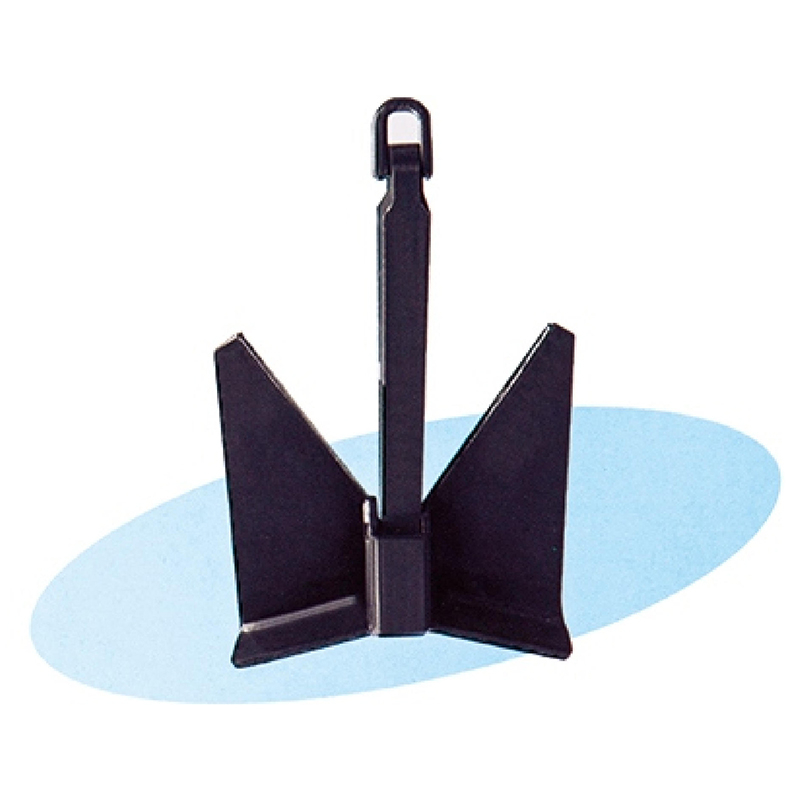

The TW type Boer anchor is a high-grip rodless anchor and an improved version of the Boer series of anchors. "TW" usually refers to the bidirectional claw or double anchor claw, that is, the double-wing anchor claw design, emphasizing the ability to maintain stability and efficient grasping force under different force directions.
It is further optimized on the basis of high-grip anchors such as the N-type Bower anchor and the AC-14 anchor, and has been approved by the International Association of Classification Societies (IACS) as a high-grip anchor. It is widely used in large merchant ships and offshore engineering vessels.

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

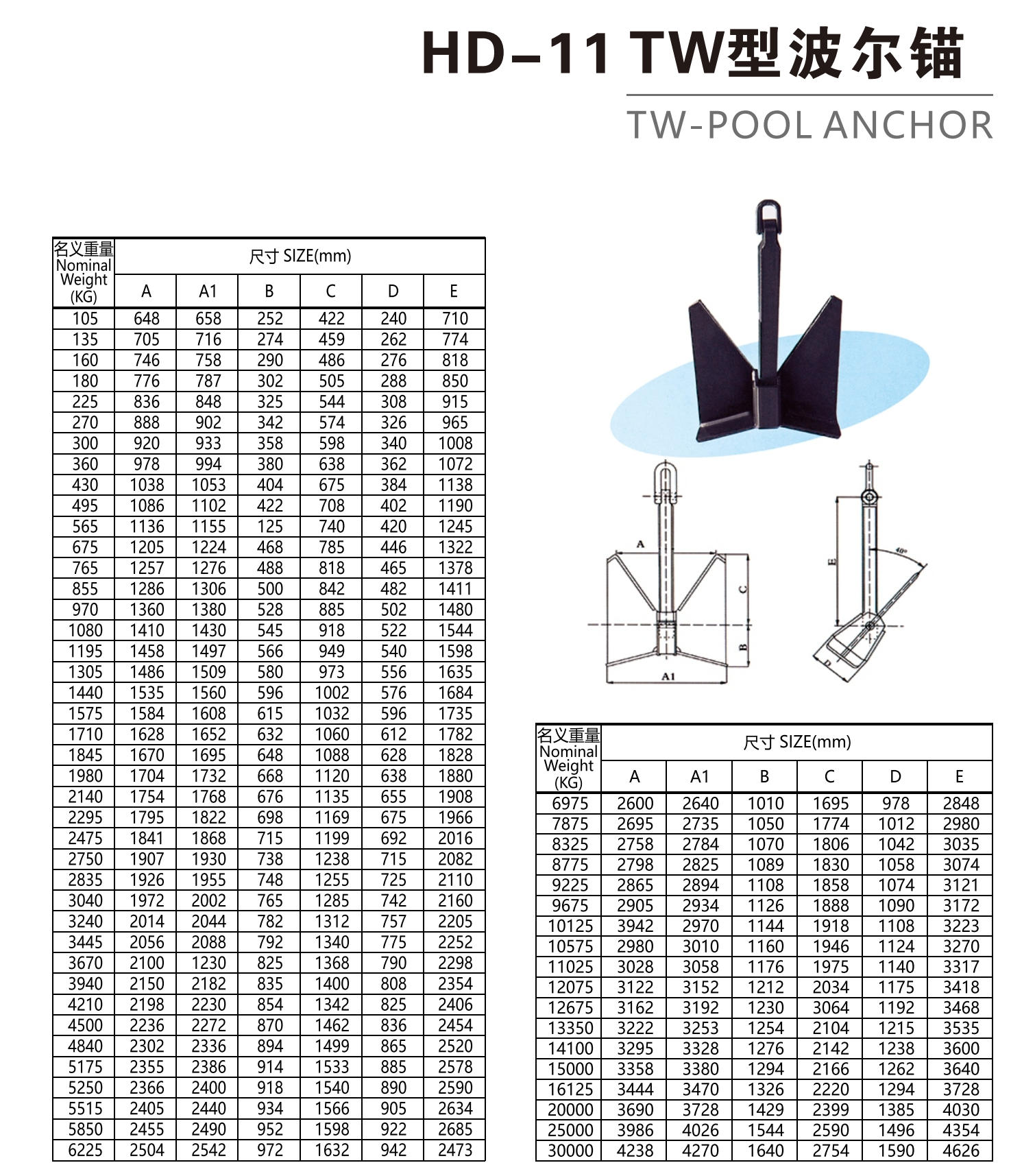

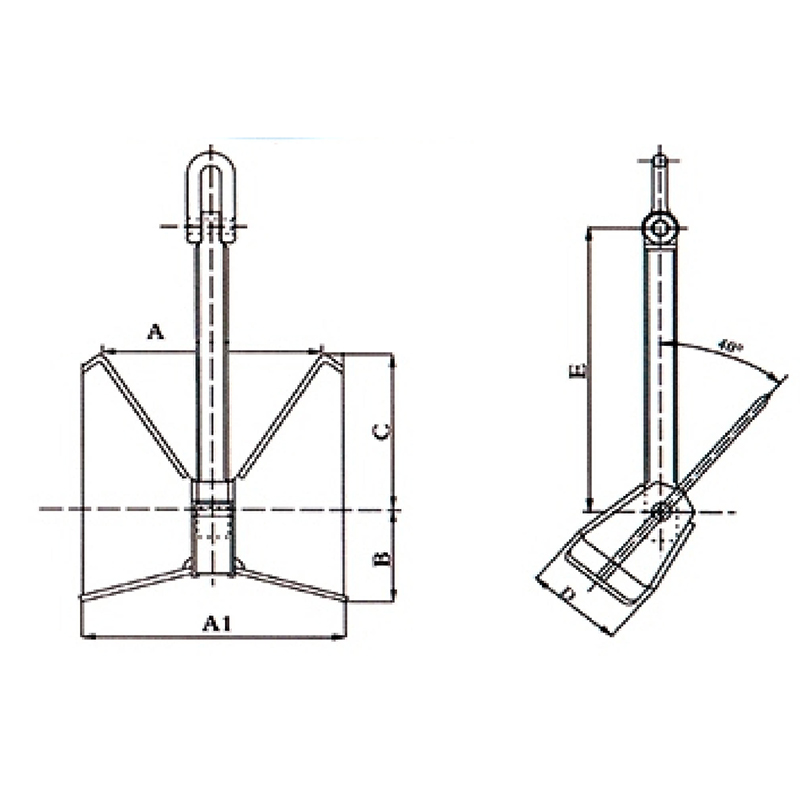

Nominal Weight (KG)	SIZE(mm)						HD-11
Nominal Weight (KG)	A	A1	B	C	D	E
105	648	658	252	422	240	710
135	705	716	274	459	262	774
160	746	758	290	486	276	818
180	776	787	302	505	288	850
225	836	848	325	544	308	915
270	888	902	342	574	326	965
300	920	933	358	598	340	1008
360	978	994	380	638	362	1072
430	1038	1053	404	675	384	1138
495	1086	1102	422	708	402	1190
565	1136	1155	125	740	420	1245
675	1205	1224	468	785	446	1322
765	1257	1276	488	818	465	1378
855	1286	1306	500	842	482	1411
970	1360	1380	528	885	502	1480
1080	1410	1430	545	918	522	1544
1195	1458	1497	566	949	540	1598
1305	1486	1509	580	973	556	1635
1440	1535	1560	596	1002	576	1684
1575	1584	1608	615	1032	596	1735
1710	1628	1652	632	1060	612	1782
1845	1670	1695	648	1088	628	1828
1980	1704	1732	668	1120	638	1880
2140	1754	1768	676	1135	655	1908
2295	1795	1822	698	1169	675	1966
2475	1841	1868	715	1199	692	2016
2750	1907	1930	738	1238	715	2082
2835	1926	1955	748	1255	725	2110
3040	1972	2002	765	1285	742	2160
3240	2014	2044	782	1312	757	2205
3445	2056	2088	792	1340	775	2252
3670	2100	1230	825	1368	790	2298
3940	2150	2182	835	1400	808	2354
4210	2198	2230	854	1342	825	2406
4500	2236	2272	870	1462	836	2454
4840	2302	2336	894	1499	865	2520
5175	2355	2386	914	1533	885	2578
5250	2366	2400	918	1540	890	2590
5515	2405	2440	934	1566	905	2634
5850	2455	2490	952	1598	922	2685
6225	2504	2542	972	1632	942	2473
6975	2600	2640	1010	1695	978	2848
7875	2695	2735	1050	1774	1012	2980
8325	2758	2784	1070	1806	1042	3035
8775	2798	2825	1089	1830	1058	3074
9225	2865	2894	1108	1858	1074	3121
9675	2905	2934	1126	1888	1090	3172
10125	3942	2970	1144	1918	1108	3223
10575	2980	3010	1160	1946	1124	3270
11025	3028	3058	1176	1975	1140	3317
12075	3122	3152	1212	2034	1175	3418
12675	3162	3192	1230	3064	1192	3468
13350	3222	3253	1254	2104	1215	3535
14100	3295	3328	1276	2142	1238	3600
15000	3358	3380	1294	2166	1262	3640
16125	3444	3470	1326	2220	1294	3728
20000	3690	3728	1429	2399	1385	4030
25000	3986	4026	1544	2590	1496	4354
30000	4238	4270	1640	2754	1590	4626
