STEVS ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-12

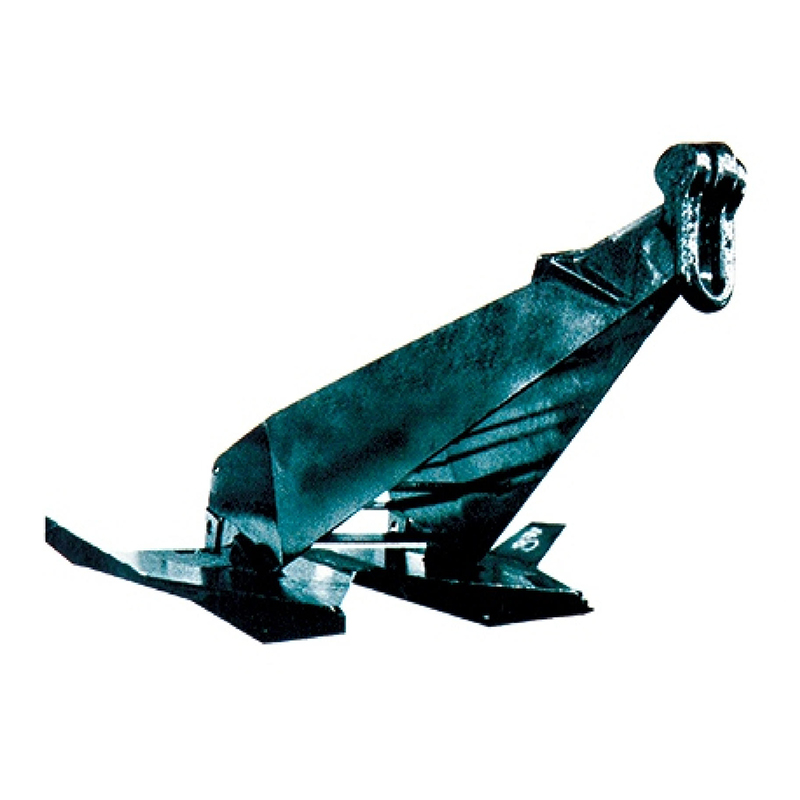

Steven Anchor is a modern high-grip towed mud anchor developed by the Dutch company Frehov Anchor. It is mainly applied to offshore oil and gas platforms, floating production storage and offloading units (FPsos), offshore wind farms and offshore engineering support vessels.
Unlike traditional Marine rodless anchors (such as Hall anchors and AC-14 anchors), Steven anchors are specialized Marine mooring anchors that achieve extremely high grip by being deeply buried after being dragged into the mud on the seabed.

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

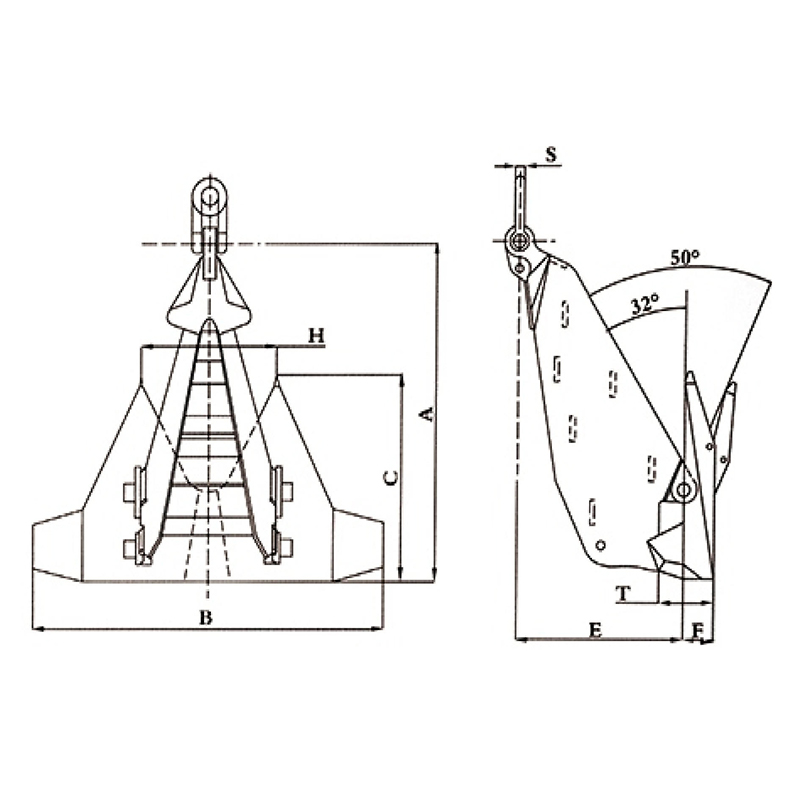

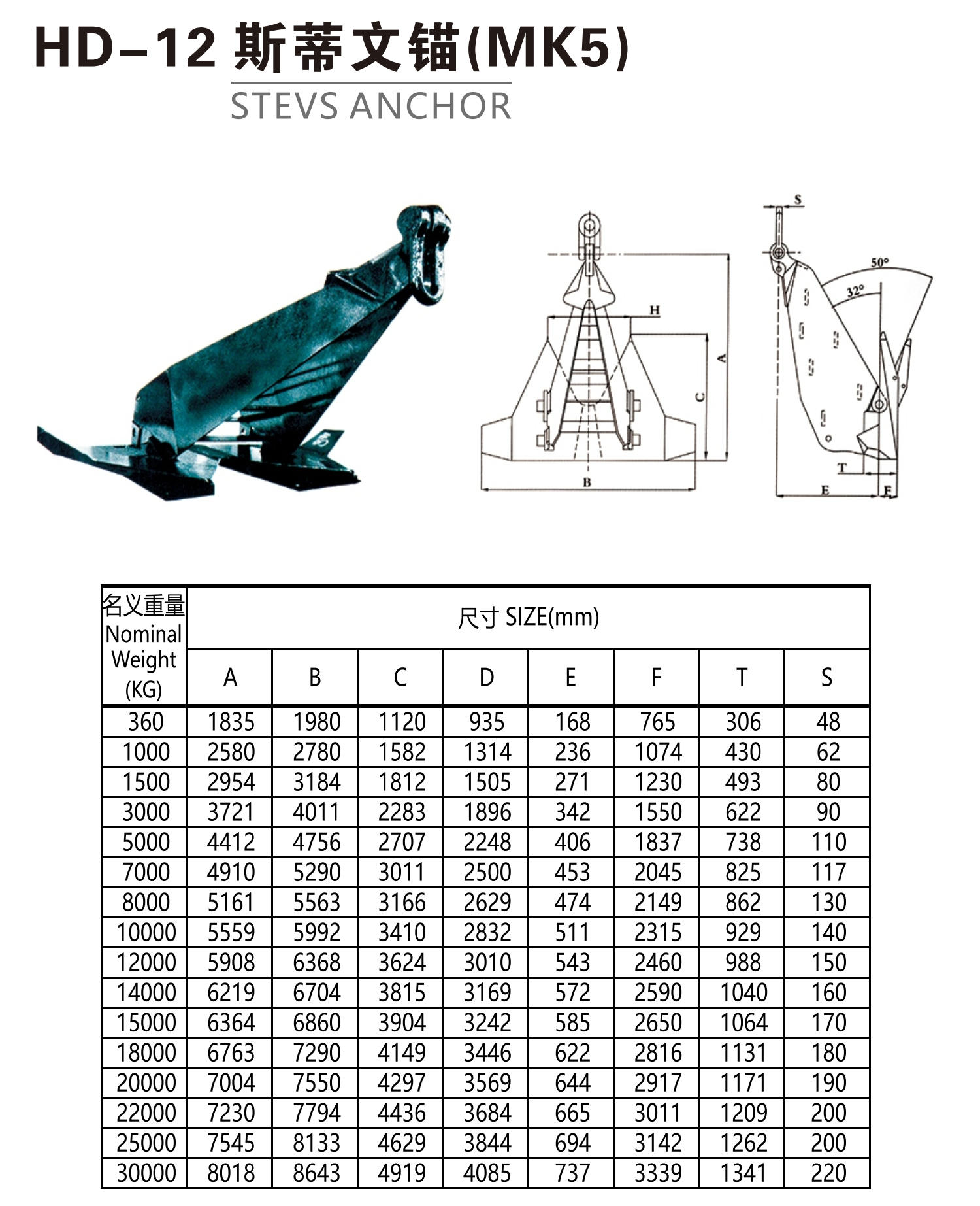

Nominal Weight (KG)	SIZE(mm)								HD-12
Nominal Weight (KG)	A	B	C	D	E	F	T	S
360	1835	1980	1120	935	168	765	306	48
1000	2580	2780	1582	1314	236	1074	430	62
1500	2954	3184	1812	1505	271	1230	493	80
3000	3721	4011	2283	1896	342	1550	622	90
5000	4412	4756	2707	2248	406	1837	738	110
7000	4910	5290	3011	2500	453	2045	825	117
8000	5161	5563	3166	2629	474	2149	862	130
10000	5559	5992	3410	2832	511	2315	929	140
12000	5908	6368	3624	3010	543	2460	988	150
14000	6219	6704	3815	3169	572	2590	1040	160
15000	6364	6860	3904	3242	585	2650	1064	170
18000	6763	7290	4149	3446	622	2816	1131	180
20000	7004	7550	4297	3569	644	2917	1171	190
22000	7230	7794	4436	3684	665	3011	1209	200
25000	7545	8133	4629	3844	694	3142	1262	200
30000	8018	8643	4919	4085	737	3339	1341	220
