DELTA ANCHOR


Availability:

Quantity:

Inquire Add to Basket

Code:
HD-13

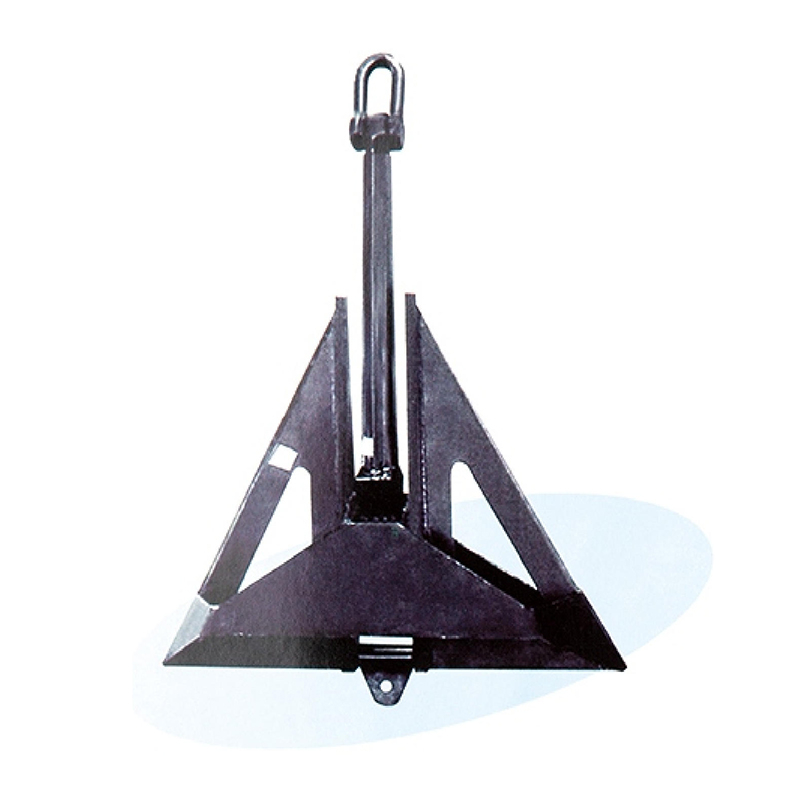

The Delta anchor (triangle anchor) is a high-grip anchor that originated in the 1980s and was developed by a British engineering team. Later, it was promoted by the Dutch Frehov Anchor Company. Due to its simple structure, strong grip and wide adaptability, it has quickly become a commonly used anchor type for commercial ships and offshore engineering vessels worldwide and has obtained the HHP certification from the International Association of Classification Societies (IACS).

Anchor Ship Baldt Stockless Hall Spek High Holding Power

Product Description

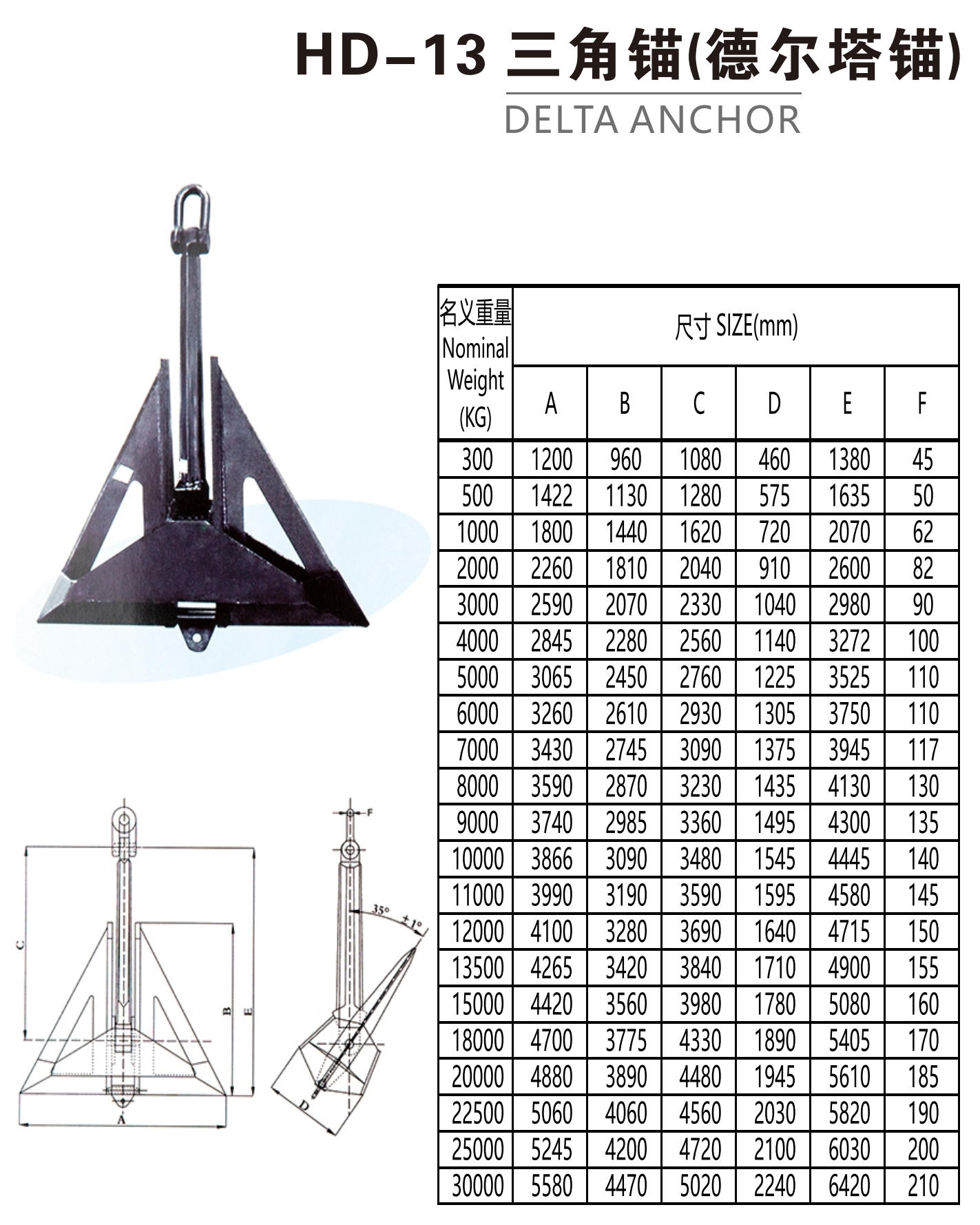

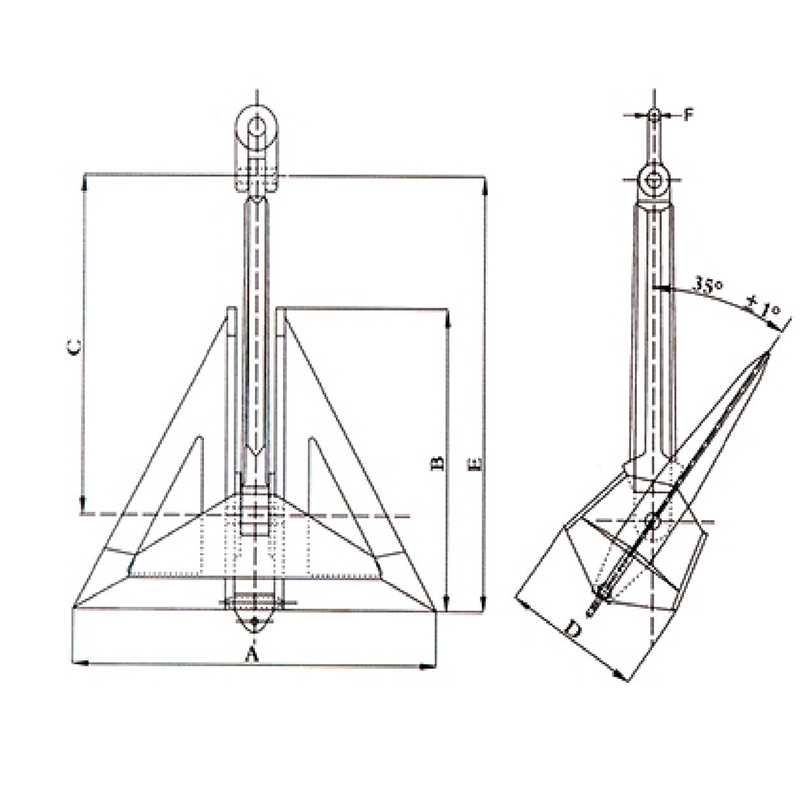

Nominal Weight (KG)	SIZE(mm)						HD-13
Nominal Weight (KG)	A	B	C	D	E	F
300	1200	960	1080	460	1380	45
500	1422	1130	1280	575	1635	50
1000	1800	1440	1620	720	2070	62
2000	2260	1810	2040	910	2600	82
3000	2590	2070	2330	1040	2980	90
4000	2845	2280	2560	1140	3272	100
5000	3065	2450	2760	1225	3525	110
6000	3260	2610	2930	1305	3750	110
7000	3430	2745	3090	1375	3945	117
8000	3590	2870	3230	1435	4130	130
9000	3740	2985	3360	1495	4300	135
10000	3866	3090	3480	1545	4445	140
11000	3990	3190	3590	1595	4580	145
12000	4100	3280	3690	1640	4715	150
13500	4265	3420	3840	1710	4900	155
15000	4420	3560	3980	1780	5080	160
18000	4700	3775	4330	1890	5405	170
20000	4880	3890	4480	1945	5610	185
22500	5060	4060	4560	2030	5820	190
25000	5245	4200	4720	2100	6030	200
30000	5580	4470	5020	2240	6420	210
